E LINE Ver4.2

Six Type of Full Color LEDs , Excellent cost-performance.

E LINE

Six Type of Full Color LEDs.
Excellent cost-performance.



Version 4.2
Key Features

1. Six Types of Color LEDs.

2. Excellent cost-effectiveness in performance.

3. Vivid colors, 25% brighter compared to the previous version, Ver. 4.0.

4. Optimal spectrum for plant growth.

5. Controller for brightness, timer.

6. Slim design made with top-quality aluminum frame.




Precisely designed spectrum with Six Type of Color LEDs for aquatic plants growth


The E Line spectrum, designed with 6 key wavelengths, focuses on supplying light energy essential for optimal plant growth. By exclusively using color LEDs, it maximizes the colors of tropical fish and aquatic plants to their fullest potential.



Key Features

1. Six Types of Color LEDs.

2. Excellent performance-to-cost ratio.

2. Vivid colors, 25% brighter compared to Ver. 4.0.

3. Optimal spectrum for plant growth and photosynthesis.

5. Lighting controller with brightness and timer settings.

6. Slim design made with top-quality aluminum.



Photosynthetic
Activity and Growth


Plants need light energy for photosynthesis and growth, but not all wavelengths are necessary. Therefore, a good spectrum should be designed with only the required wavelengths for their growth and energy efficiency. The E LINE Spectrum is designed with this in mind. It provides just the right amount of necessary wavelengths of light to help aquatic plants photosynthesize and grow well without being too bright. E LINE is a very efficient lighting option for your planted aquariums or aquascaping.




Aquarium becomes more and more vivid


The TWINSTAR 4th generation spectrum uses only color LEDs, without any white LEDs like WRGB lights. This results in colors that are more vivid than WRGB lighting. You will see that the E LINE makes trofical fish and aquatic plants look increasingly vibrant in your planted tank or aquascaping.




Performance Test

 You can check the performance of the E-line through this video.

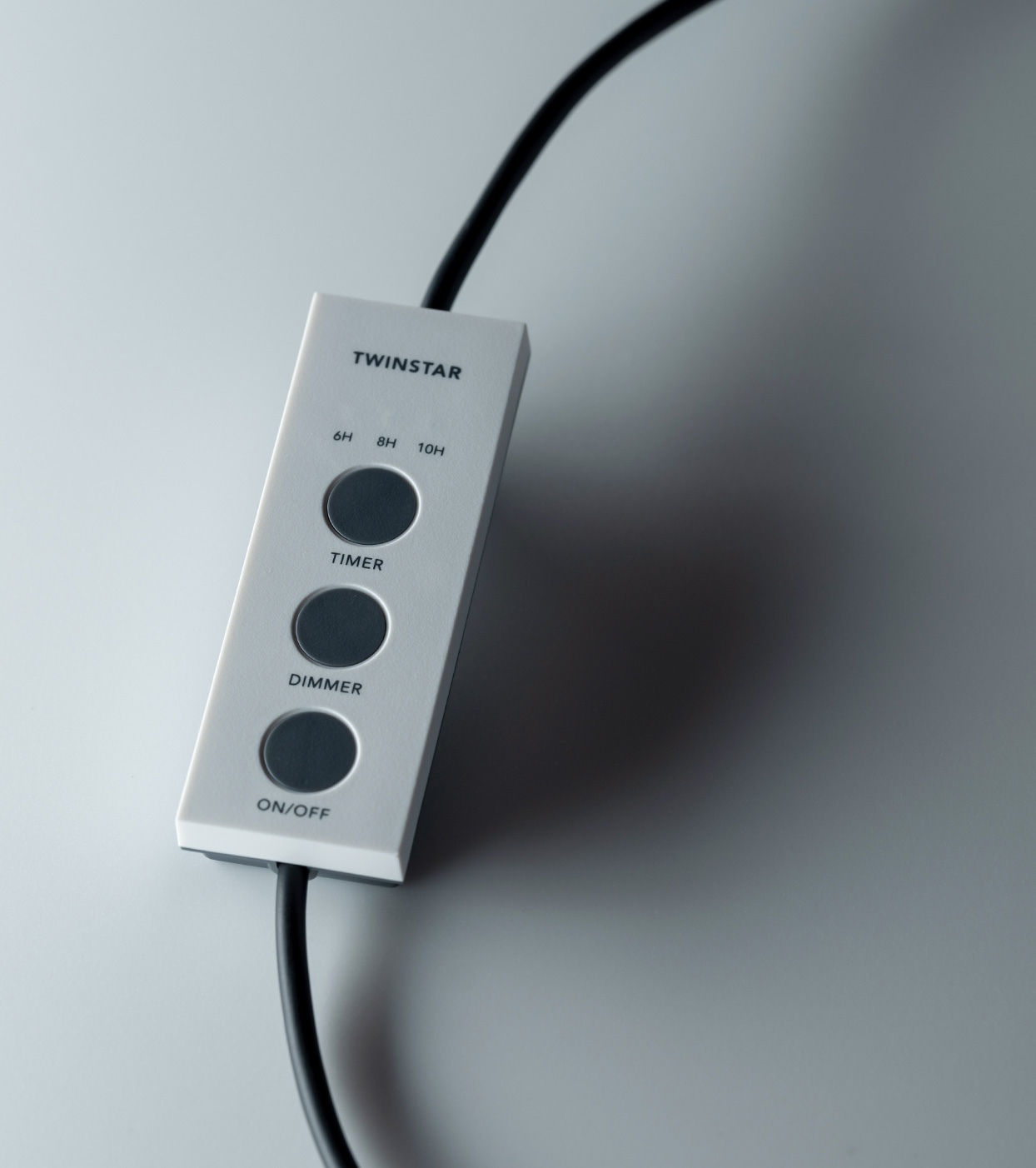

Lighting Controller

The controller includes only the essential functions needed for aquarium lighting and has been designed for intuitive ease of use.


The TWINSTAR controller includes 7-level brightness adjustment, 6-hour, 8-hour, and 10-hour timer settings, an ON/OFF button, and features such as slow start and dimming.

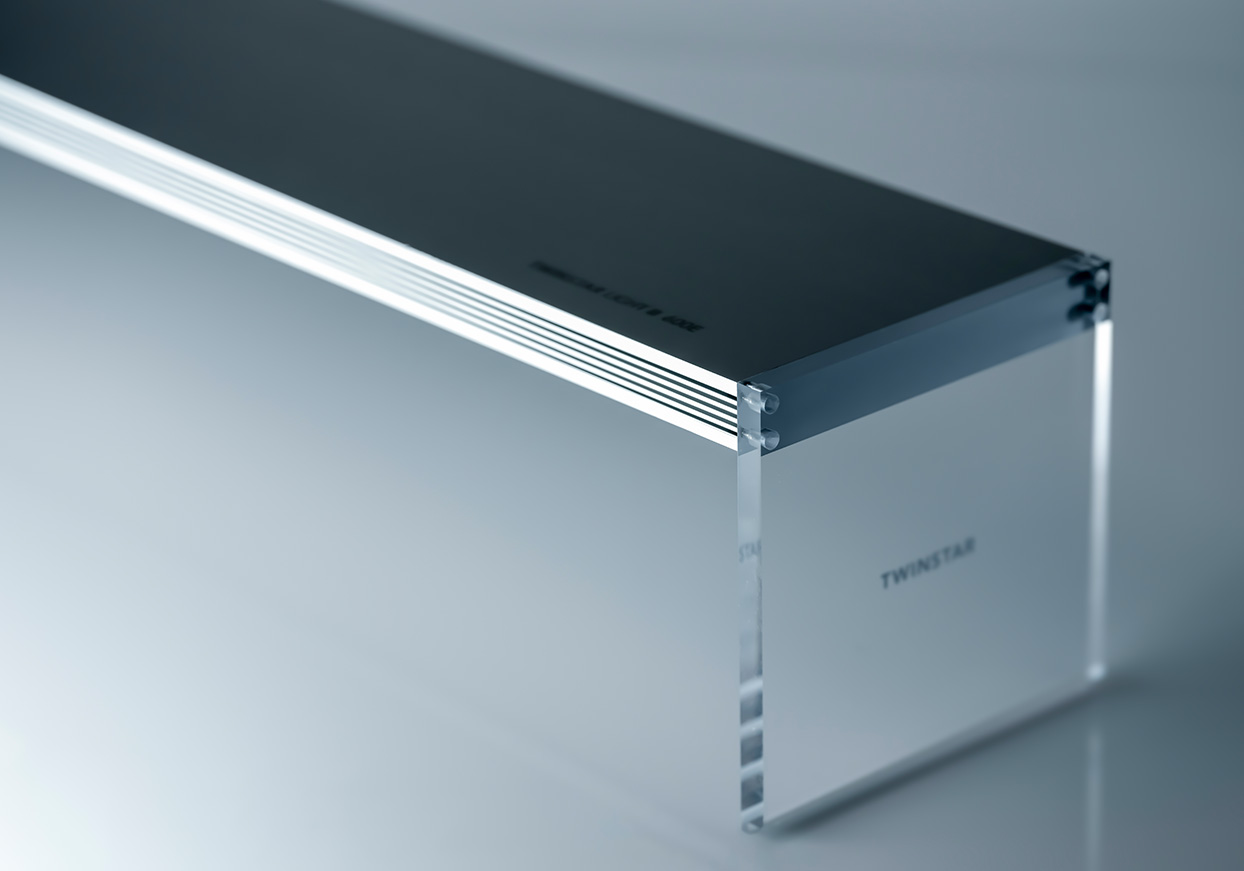

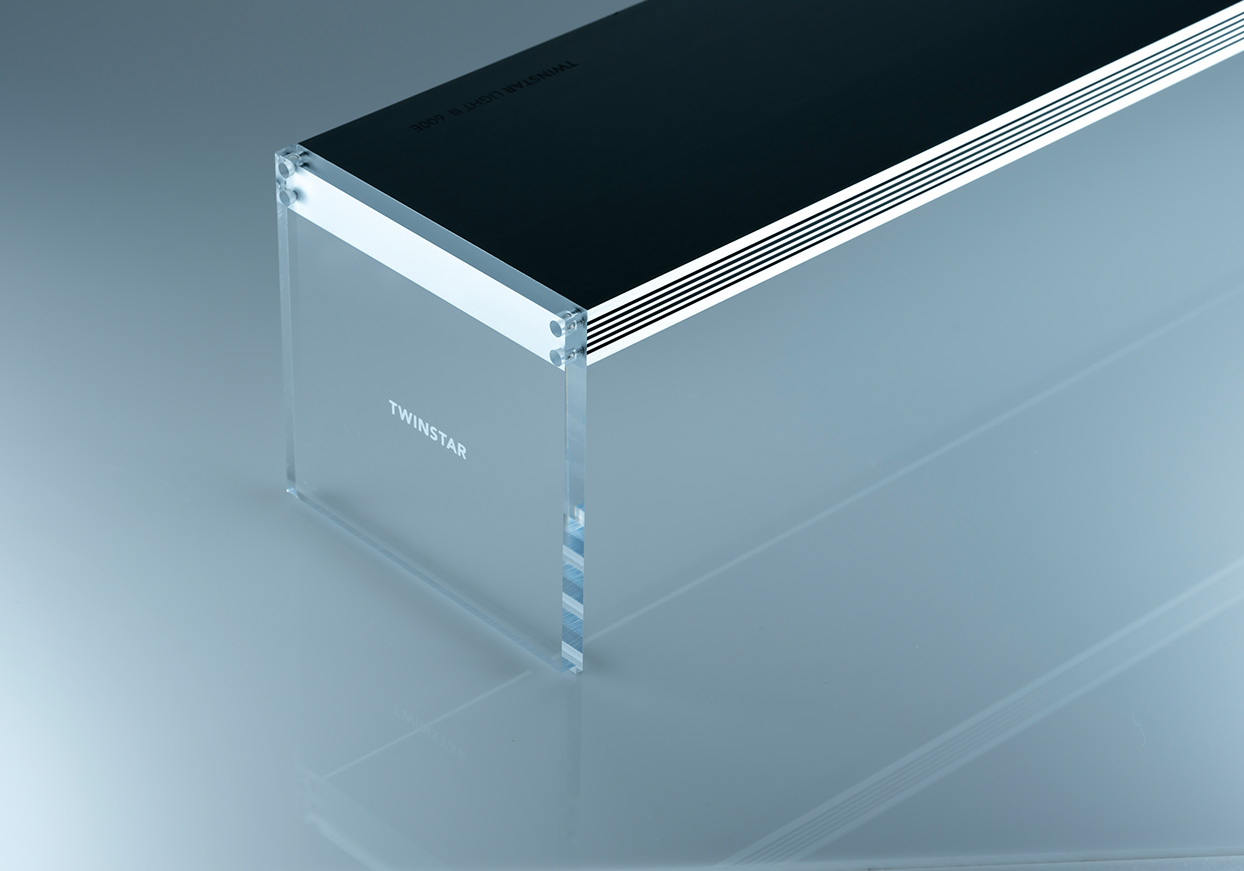

EC DESIGN

EC design with a clear acrylic stand that matches a clear glass aquarium.





EC LINEUP
Specification,
Recommended tank size.


The EC model is designed with high-quality aluminum and acrylic. It is about 20% brighter than the EA model. We highly recommend it for those who value design.

1.MODEL NAME : 450EC

• Product size: W450(mm) X D117(mm) X H99(mm)

• Power consumption : 38W

• LEDs : Six Type of Color LEDs

• Glass thickness : 5mm

• Recommended aquarium size :

   - W45(cm) X D27(cm) X H30(cm)


2.MODEL NAME : 600EC

• Product size: W597(mm) X D117(mm) X H104(mm)

• Power consumption : 47W

• LEDs : Six Type of Color LEDs

• Glass thickness : 6mm

• Recommended aquarium size :

   - W60(cm) X D30(cm) X H25(cm),

   - W60(cm) X D30(cm) X H36(cm),

   - W60(cm) X D45(cm) X H45(cm)

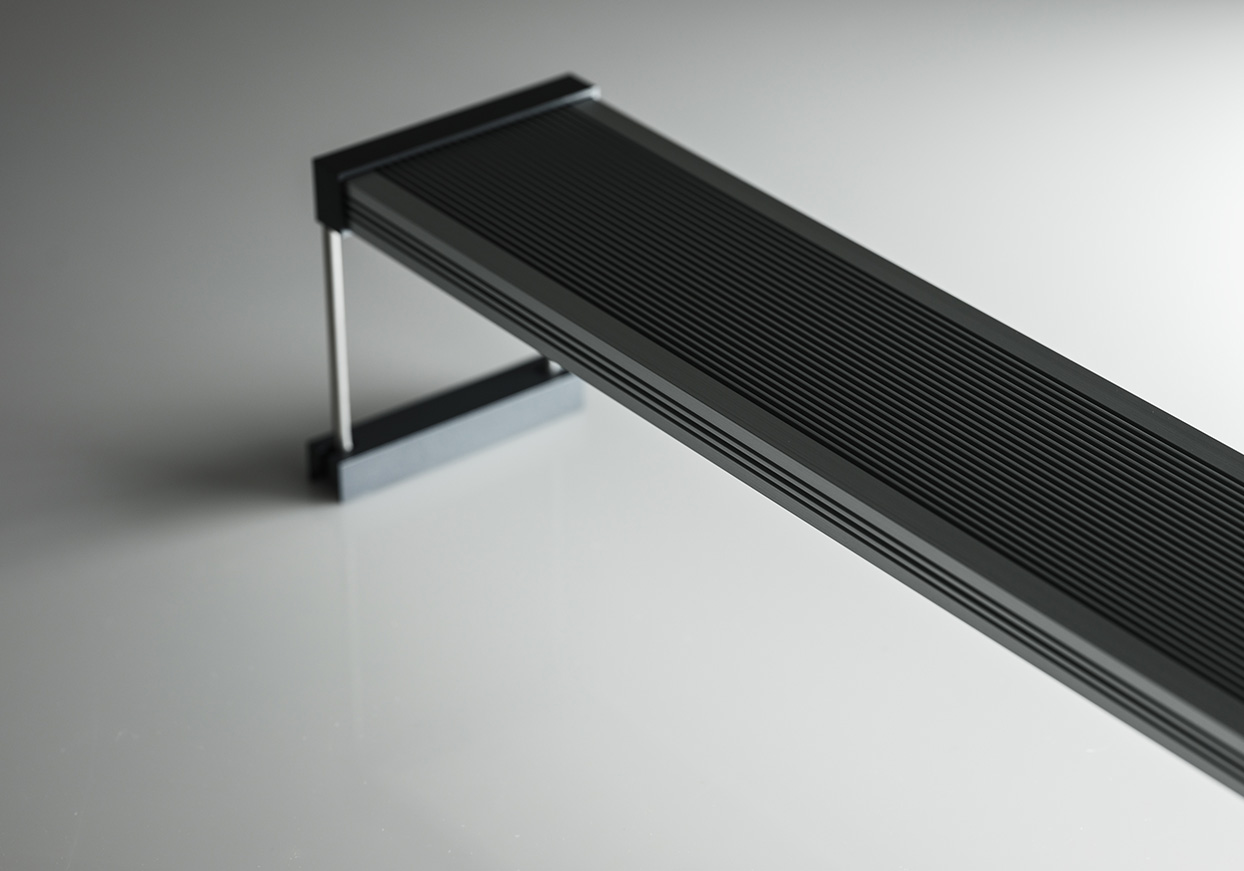

EA DESIGN

Minimal design. Adjustable size.





EA LINEUP
Specification,
Recommended tank size.


The EA model offers rich colors and an optimal spectrum. In a standard-sized aquarium, it enables photosynthesis of aquatic plants, helping you to easily make a beautiful planted aquarium.


1.MODEL NAME : 200EA

• Product size: W187(mm) X D76(mm) X H93(mm)

• Power consumption : 12W

• LEDs : Six Type of Color LEDs

• Recommended aquarium size :

   - W20(cm) X D20(cm) X H20(cm)

   - W20(cm) X D20(cm) X H30(cm)



2.MODEL NAME : 300EA

• Product size: W287(mm) X D76(mm) X H93(mm)

• Power consumption : 18W

• LEDs : Six Type of Color LEDs

• Recommended aquarium size :

   - W30(cm) X D18(cm) X H24(cm)

   - W36(cm) X D22(cm) X H26(cm)



3.MODEL NAME : 450EA

• Product size : W437(mm) X D76(mm) X H93(mm)

• Power consumption : 29W

• LEDs : Six Type of Color LEDs

• Recommended aquarium size :

   - W45(cm) X D27(cm) X H30(cm)

   - W45(cm) X D27(cm) X H30(cm)



4.MODEL NAME : 600EA

• Product size: W587(mm) X D76(mm) X H93(mm)

• Power consumption : 41W

• LEDs : Six Type of Color LEDs

• Recommended aquarium size :

   - W60(cm) X D30(cm) X H25(cm)

   - W60(cm) X D30(cm) X H36(cm)


5.MODEL NAME : 900EA, 2unit for planted tank

• Product size : W870(mm) X D76(mm) X H93(mm)

• Power consumption : 55W

• LEDs : Six Type of Color LEDs

• Recommended aquarium size :

   - W90(cm) X D45(cm) X H45(cm)



6.MODEL NAME : 1200EA, 2unit for planted tank

• Product size: W1094(mm) X D76(mm) X H93(mm)

• Power consumption : 66W

• LEDs : Six Type of Color LEDs

• Recommended aquarium size :

   - W120(cm) X D50(cm) X H50(cm)

Precisely designed spectrum with Six Type of Color LEDs for aquatic plants growth

The E Line spectrum, designed with 6 key wavelengths, focuses on supplying light energy essential for optimal plant growth. By exclusively using color LEDs, it maximizes the colors of tropical fish and aquatic plants to their fullest potential.

Aquatic plants thriving under E-Line lighting

Photosynthetic Activity and Growth

Aquatic plants need light energy for photosynthesis and growth, but not all wavelengths are necessary. Therefore, a good spectrum should be designed with only the required wavelengths for their growth and energy efficiency. The E LINE Spectrum is designed with this in mind. It provides just the right amount of necessary wavelengths of light to help aquatic plants photosynthesize and grow well without being too bright. E LINE is a very efficient lighting option for planted aquariums and aquascaping.

Vibrantly colored aquatic plants

Aquarium becomes more vivid

The TWINSTAR 4th generation spectrum uses only color LEDs, without any white LEDs like WRGB lights. This results in colors that are more vivid than WRGB aquarium lighting. You will see that the E LINE makes trofical fish and aquatic plants look increasingly vibrant in your aquascaping or planted tank.


Performance Test

 You can check the performance of the E-line through this video.


Lighting Controller

The TWINSTAR controller offers most of the essential functions needed for aquarium lighting and features an intuitive design for easy control.


1. Provides 7 levels of brightness adjustment.

2. Offers three timer options: 6 hours, 8 hours, and 10 hours.

3. Includes an ON/OFF button to turn on or off at any time.

4. Features a 10-minute Slow Start and Slow Down function.

TWINSTAR EA LINEUP

Specification, Recommended Aquarium

The EA model offers rich colors and an optimal spectrum. In a standard-sized aquarium, it enables photosynthesis of aquatic plants, helping you to easily make a beautiful planted aquarium.


1.Model Name : 200EA

   • Product size: W187(mm) X D76(mm) X H93(mm)

   • Power consumption : 12W

   • LEDs : Six Type of Color LEDs

   • Recommended aquarium size :

     - W20(cm) X D20(cm) X H20(cm)

     - W20(cm) X D20(cm) X H30(cm)




2.Model Name : 300EA

    • Product size: W287(mm) X D76(mm) X H93(mm)

    • Power consumption : 18W

    • LEDs : Six Type of Color LEDs

    • Recommended aquarium size :

       - W30(cm) X D18(cm) X H24(cm)

       - W36(cm) X D22(cm) X H26(cm)




3.Model Name : 450EA

    • Product size: W437(mm) X D76(mm) X H93(mm)

    • Power consumption : 29W

    • LEDs : Six Type of Color LEDs

    • Recommended aquarium size :

       - W45(cm) X D27(cm) X H30(cm)




4.Model Name : 600EA

    • Product size: W587(mm) X D76(mm) X H93(mm)

    • Power consumption : 41W

    • LEDs : Six Type of Color LEDs

    • Recommended aquarium size :

       - W60(cm) X D30(cm) X H25(cm)

       - W60(cm) X D30(cm) X H36(cm)




5.Model Name : 900EA, 2unit for planted tank

    • Product size: W870(mm) X D76(mm) X H93(mm)

    • Power consumption : 55W

    • LEDs : Six Type of Color LEDs

    • Recommended aquarium size :

       - W90(cm) X D45(cm) X H45(cm)



6.Model Name : 1200EA, 2unit for planted tank
   • Product size: W1094(mm) X D76(mm) X H93(mm)

   • Power consumption : 66W

   • LEDs : Six Type of Color LEDs

   • Recommended aquarium size :

      - W120(cm) X D50(cm) X H50(cm)

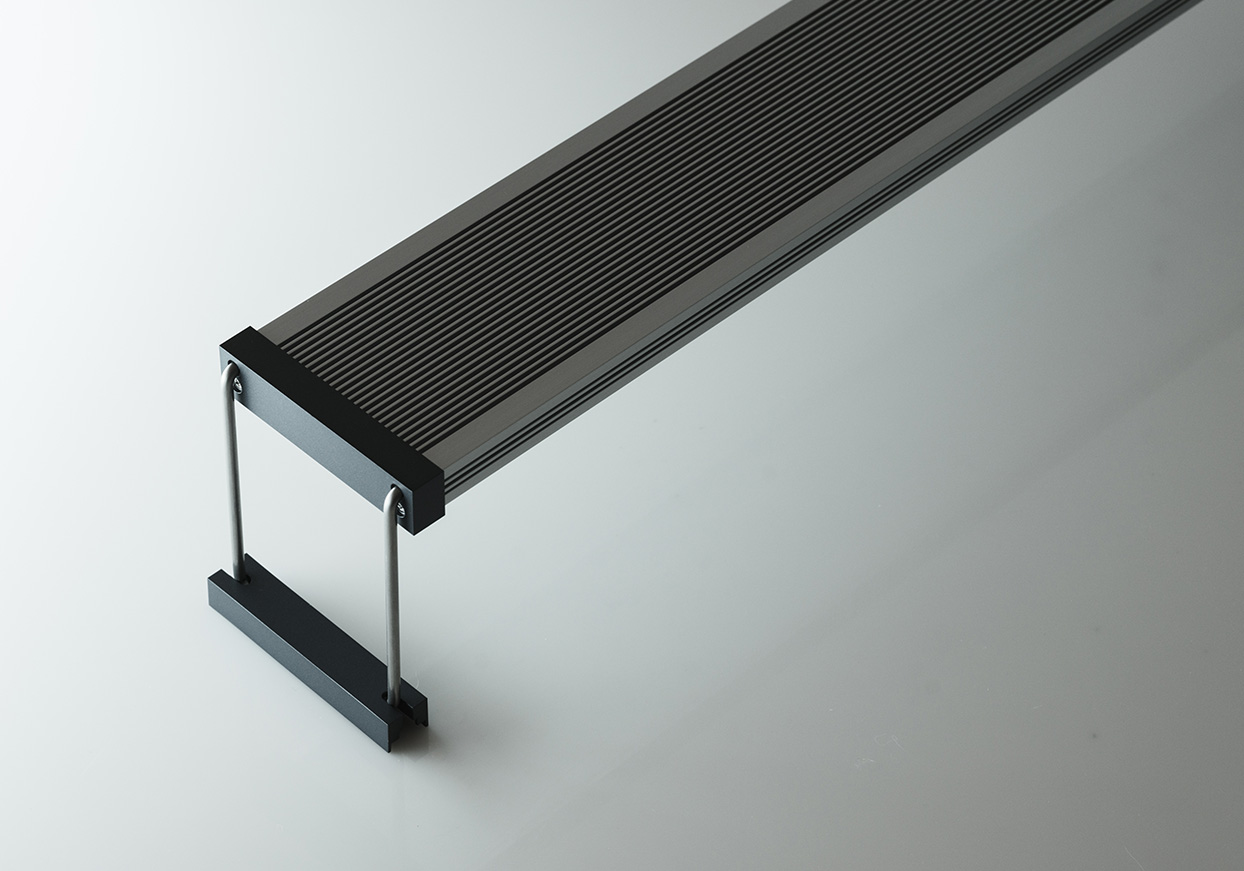

EA DESIGN

Metal color. Minimal design. Adjustable size

TWINSTAR EC LINEUP

Specification, Recommended Aquarium

The EC model is designed with high-quality aluminum and acrylic. It is about 20% brighter than the EA model. We highly recommend it for those who value design.


1.Model Name : 450EC

   • Product size: W450(mm) X D117(mm) X H99(mm)

   • Power consumption : 38W

   • LEDs : Six Type of Color LEDs

   • Glass thickness : 5mm

   • Recommended aquarium size :

     - W45(cm) X D27(cm) X H30(cm)




2.Model Name : 600EC

   • Product size: W597(mm) X D117(mm) X H104(mm)

   • Power consumption : 47W

   • LEDs : Six Type of Color LEDs

   • Glass thickness : 6mm

   • Recommended aquarium size :

     - W60(cm) X D30(cm) X H25(cm)

     - W60(cm) X D30(cm) X H36(cm)

EC DESIGN

The best design among TWINSTAR lighting.
